10G 100G FTTX Network Active Optical Cable Small Size Low Power Consumption

Name: 10G 100G FTTX Network Active Optical Cable Small Size Low Power Consumption
Brand: Fujioptic
Price: 1 USD

Quality 10G 100G FTTX Network Active Optical Cable Small Size Low Power Consumption wholesale

Brand Name : Fujioptic

Model Number : QSFP+AOC 40G, QSFP+40G-AOC

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : 3~7 work days

Packaging Details : plastic zip bag and carton

Fiber Type : OM2/OM3/OM4 MM

Wavelength : 1310/1550nm

Application : FTTH FTTB FTTX Network

Data Rate : 10G 40G 100G

Contact Now

10G 40G 100G Active Optical Cables (AOC) Optical Module

Product detail

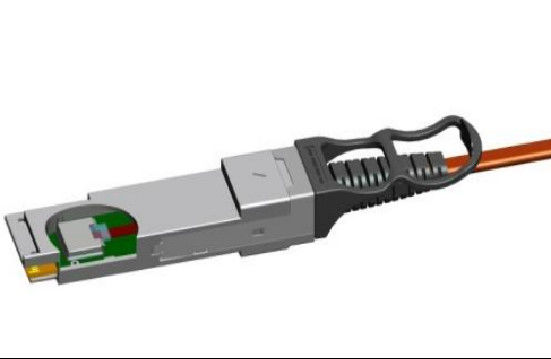

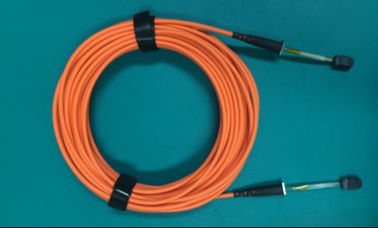

AOC (Active Optical Cable )is composed of optical transceivers in both ends and multimode fiber cable in between. It is widely used in data centers to accelerate data connectivity for storage, networking and computing.

Features

1. 8-core, 12-core and 24-core socket assemblies

2. Various types and lengths of optical fiber combinations can be customized

3. Length tolerance can be controlled at +/-0.3mm

4. Small size, low power consumption

Applications

1. High Speed Computer Communication Applications

2. High-speed transmission equipment

3. Ethernet System, Data Center

4. Routers, switches

Parameter

Type		SM/APC		SM/PC		MM/PC
Fiber Cores		4,8,12,24 cores
Connector Type		MPO or MTP/Female, MPO or MTP/Male
Wavelength		1310/1550nm				850/1300nm
Fiber Type		G652D,G657A1,etc				OM1,OM2,OM3,OM4
Insertion Loss		Low Loss	Standard	Low Loss	Standard	Low Loss	Standard
		<=0.35dB	<=0.70dB	<=0.35dB	<=0.70dB	<=0.35dB	<=0.50dB
Return Loss		>=55dB		>=45dB		>=20dB
Curvature	X axis	>1000mm
	Y axis	>50mm
Angle	X axis	0±0.2°
	Y axis	0±0.2°
Fiber Height		1000nm/FH/3500nm
Fiber Height Difference		<=500nm
Near Optical Fiber Height Difference		<=300nm
